TP-Link RE305 AC1200 WiFi Extender (RE305) – Dual Band Wireless Signal Booster, 1.2Gbps, Access Point Mode, OneMesh Compatible
Pick up from the tdebiz Store
To pick up today
Courier delivery
Our courier will deliver to the specified address
Porter / Rapido
Currently available only in Surat
Fast Delivery ( By Air )
We will ship from your product By Air to nearest center to speed up the delivery
Description

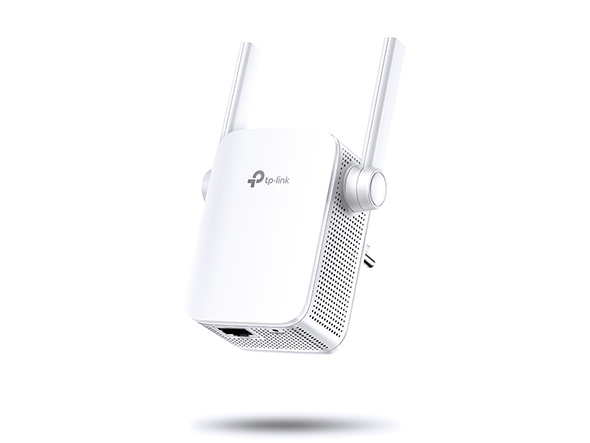

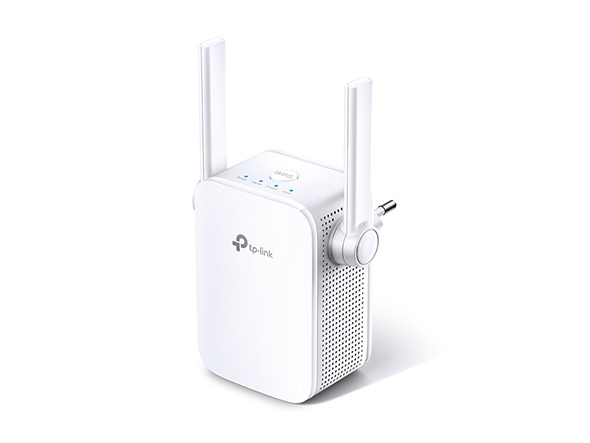

TP-Link RE305 AC1200 WiFi Range Extender – Eliminate Dead Zones
The TP-Link RE305 AC1200 WiFi Range Extender boosts your existing router’s signal to hard-to-reach areas like bedrooms, gardens, and upstairs offices. Works with any standard router.
Key Features of the TP-Link RE305 AC1200 WiFi Range Extender
-
AC1200 Dual Band Speed: 300Mbps (2.4GHz) + 867Mbps (5GHz) – total 1.2Gbps
-
Intelligent Signal Indicator: Built-in LED helps find optimal placement
-
One-Touch Setup (WPS): Instant connection to your router
-
OneMesh™ Compatible: Creates a seamless whole-home mesh network
-
Universal Compatibility: Works with any standard Wi-Fi router
-

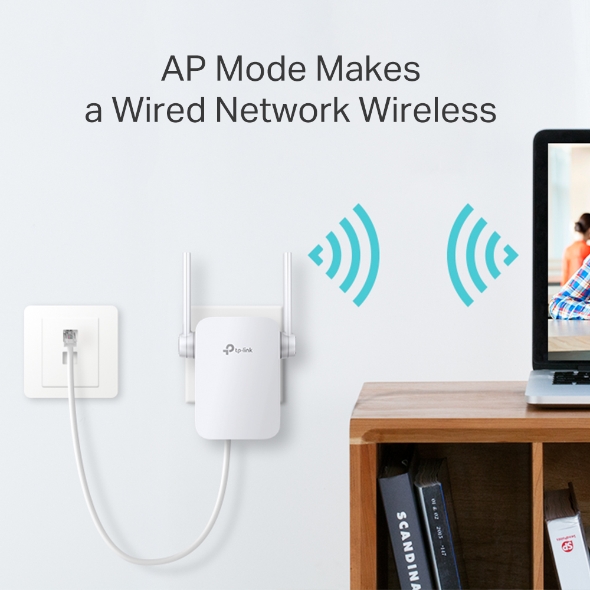

Flexible Modes: Ethernet port for Access Point mode or wireless adapter
How the TP-Link RE305 AC1200 WiFi Range Extender Eliminates Dead Zones

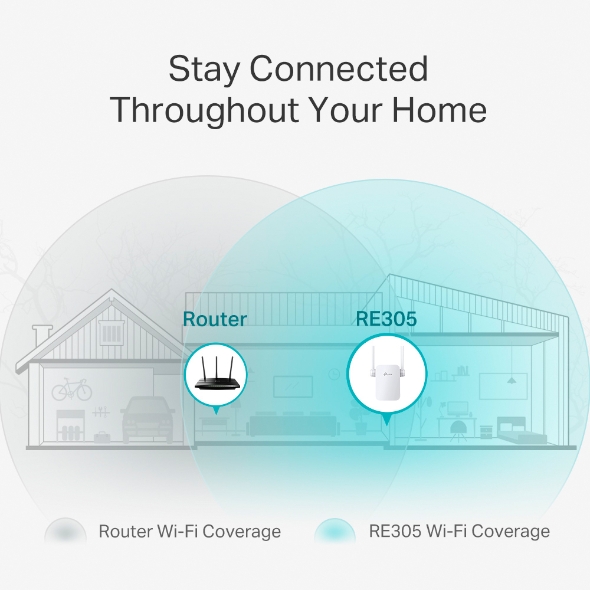

The TP-Link RE305 AC1200 WiFi Range Extender wirelessly connects to your existing router, captures the signal, amplifies it, and rebroadcasts it to areas previously out of reach.
Unlike older single-band extenders, the TP-Link RE305 AC1200 WiFi Range Extender uses 802.11ac technology for stable, high-speed connections on both 2.4GHz and 5GHz bands.
TP-Link RE305 AC1200 WiFi Range Extender – Smart Signal Indicator
The built-in LED signal indicator on the TP-Link RE305 AC1200 WiFi Range Extender takes the guesswork out of placement:
| LED Color | Meaning |
|---|---|
| Solid Green | Good connection – ideal placement |
| Solid Red | Too far from router – relocate closer |
| Off | No connection – check power or router |
TP-Link RE305 AC1200 WiFi Range Extender – OneMesh™ Technology
The TP-Link RE305 AC1200 WiFi Range Extender supports OneMesh™ , which creates a seamless whole-home mesh network. Unlike traditional extenders, OneMesh allows you to:
-
Move freely without manually switching networks
-
Use a single network name (SSID) throughout your home
-
Enjoy automatic handoff between router and extender
TP-Link RE305 AC1200 WiFi Range Extender – Easy Setup Process
You don’t need to be a tech expert. Using the WPS button, the TP-Link RE305 AC1200 WiFi Range Extender pairs with your router in seconds.
Setup options:
-
Push WPS button on your router
-
Push WPS button on the RE305 within 2 minutes
-
Follow the signal LED for optimal placement
-
Or use the Tether App for guided setup
What’s in the Box
-
1 x TP-Link RE305 AC1200 WiFi Range Extender
-
1 x Quick Installation Guide
-
1 x Resource CD (if applicable)
| Specification | Details |
|---|---|
| Model | RE305 |
| Product Name | TP-Link RE305 AC1200 WiFi Range Extender |
| Hardware Version | V3, V4 (varies by region) |
| Plug Type | EU, UK, US (varies by region) |
Wireless Specifications
| Specification | Details |
|---|---|
| Wireless Standard | IEEE 802.11ac, IEEE 802.11a, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Frequency Band | 2.4GHz & 5GHz (Dual Band) |
| Signal Rate | 5GHz: Up to 867Mbps 2.4GHz: Up to 300Mbps |
| Combined Speed | AC1200 (1.2Gbps total) |
| Wireless Modes | Range Extender Mode / Access Point Mode |
| Wireless Security | 64/128-bit WEP WPA-PSK / WPA2-PSK WPA3 (with firmware update / V4 hardware) |
| Transmission Power | <17dBm (2.4GHz) <17dBm (5GHz) |
Hardware Specifications
| Specification | Details |
|---|---|
| Antenna | 2 x External fixed antennas |
| Interface | 1 x 10/100Mbps Ethernet Port (RJ45) |
| Buttons | WPS Button, Reset Button |
| Input Power | 100-240V ~ 50/60Hz |
| Max. Power Consumption | 7.3W |
| Dimensions (W x D x H) | 3.1 x 3.0 x 3.0 inches (80 x 78 x 77 mm) |
| Weight | 1.2 lbs (assembled) |
Software / Wireless Functions
| Function | Details |
|---|---|
| Wireless Functions | Wireless Statistics Concurrent Mode (2.4GHz & 5GHz simultaneously) Access Control LED Control Domain Login Function |
| Mesh Support | OneMesh™ compatible EasyMesh support (V4 hardware / firmware update) |
Certifications
| Specification | Details |
|---|---|
| Certification | CE, FCC, RoHS |
Environmental Specifications
| Specification | Details |
|---|---|
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Storage Temperature | -40°C ~ 70°C (-40°F ~ 158°F) |
| Operating Humidity | 10% ~ 90% non-condensing |
| Storage Humidity | 5% ~ 90% non-condensing |
System Requirements
| Specification | Details |
|---|---|
| Operating Systems | Microsoft Windows 98SE, NT, 2000, XP, Vista, 7, 8, 10, 11 Mac OS NetWare UNIX Linux |
Package Contents
| Item | Details |
|---|---|
| In the Box | 1 x TP-Link RE305 AC1200 WiFi Range Extender 1 x Quick Installation Guide |
| Box Dimensions (W x D x H) | 6.15 x 4 x 3.7 inches (156.5 x 101.5 x 95 mm) |
