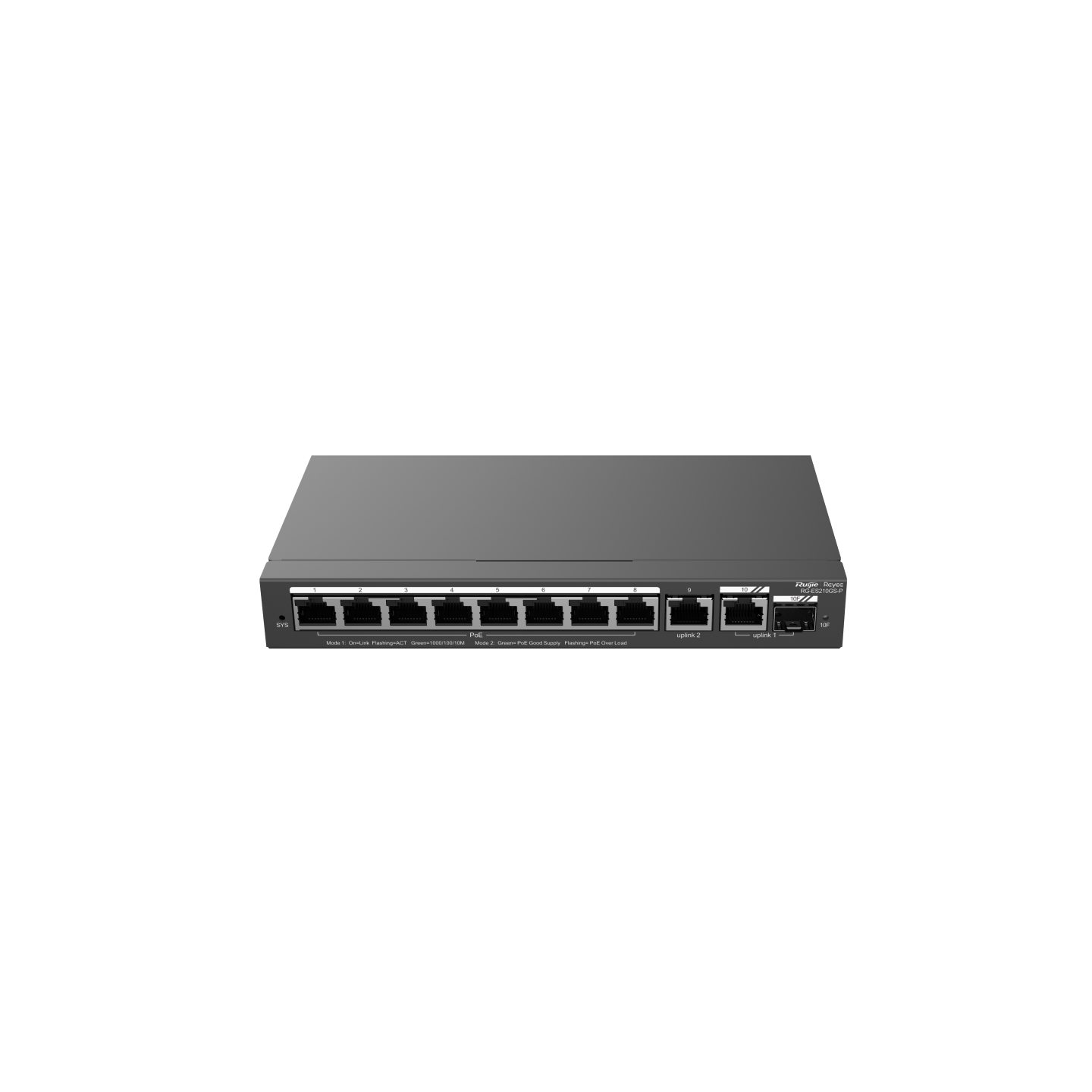

Ruijie Reyee RG-ES210GS-P 10-Port Gigabit Smart Cloud Managed PoE Switch | 8 Port PoE+ 120W Power Budget | Rack Mount Compatible Network Switch for IP Camera CCTV Surveillance Business

Description

The Ruijie Reyee 8 port poe RG-ES210GS-P is a powerful 10-port gigabit smart cloud managed network switch engineered specifically for modern business networks and IP surveillance systems. This enterprise-grade PoE switch combines advanced cloud management capabilities with intelligent features that simplify network deployment and maintenance. With 8 high-power PoE+ ports delivering a total 120W power budget and IEEE 802.3af/at compliance, this switch can simultaneously power and connect IP cameras, wireless access points, VoIP phones, and other network devices without requiring separate power adapters at each location.

Built for reliability and performance, the RG-ES210GS-P offers 20Gbps switching capacity with 14.8Mpps forwarding rate to ensure smooth, lag-free data transmission even under heavy network loads. The innovative IP camera recognition feature automatically detects and optimizes settings for connected surveillance cameras, making it the ideal choice for CCTV installations. Lifetime cloud management through Ruijie Cloud platform enables remote configuration, monitoring, firmware updates, and troubleshooting from anywhere in the world via web browser or mobile app. The fanless design ensures silent operation suitable for office environments, while automatic loop prevention protects your network from broadcast storms and ensures uninterrupted service continuity. Whether you’re building a new network infrastructure or upgrading existing systems, this smart managed PoE switch delivers professional-grade features at a cost-effective price point perfect for small to medium businesses.

• 10 Gigabit Ports with 8 PoE+ Outputs – 8 x 10/100/1000Mbps PoE+ ports (120W total budget, 30W per port) + 1 Gigabit uplink + 1 Combo SFP port for fiber connectivity
• Smart Cloud Management – Lifetime free management via Ruijie Cloud platform; configure, monitor, and troubleshoot your network remotely from web dashboard or mobile app
• IP Camera Recognition Technology – Automatically detects and optimizes settings for connected surveillance cameras; perfect for CCTV and security system deployments
• High-Performance Switching – 20Gbps switching capacity and 14.8Mpps forwarding rate ensure smooth data transmission for bandwidth-intensive applications
• Automatic Loop Prevention – Built-in loop detection and prevention mechanism protects network stability and eliminates broadcast storms without manual intervention
• Intelligent PoE Management – Dynamic power allocation automatically adjusts PoE output based on connected device requirements; prevents overload with priority-based power distribution
• 16 VLAN Support – Create isolated virtual networks for enhanced security and traffic management; segregate IP cameras, guest Wi-Fi, and business networks
• Fanless Silent Operation – Zero-noise design with passive cooling makes it suitable for deployment in offices, classrooms, retail stores, and noise-sensitive environments
• Rack Mount Ready – Standard form factor allows professional installation in 19-inch network racks (mounting brackets may be sold separately)
• 6KV Surge Protection – Industrial-grade surge protection on all ports safeguards equipment from power spikes and electrical disturbances

ADDITIONAL INFORMATION

• Cloud Management Advantages – Unlike traditional managed switches requiring complex CLI configuration, Ruijie Cloud provides intuitive web and mobile interfaces. Monitor real-time bandwidth usage, configure VLANs, update firmware, and troubleshoot issues remotely without being physically present at the installation site. Perfect for businesses with multiple locations or managed service providers managing client networks.
• Ideal for IP Surveillance Systems – The intelligent IP camera recognition automatically identifies connected cameras and NVRs, applying optimized QoS settings to ensure stable video streaming without packet loss. Supports mixed deployments of 1080p, 4K, and H.265/H.264 cameras. Each PoE+ port can power high-resolution PTZ cameras or multiple standard cameras using PoE splitters.
• VLAN Segmentation Benefits – Create separate virtual networks to isolate IP cameras from corporate networks for enhanced security. Prevent unauthorized access to surveillance footage while maintaining centralized management. Guest Wi-Fi can also be segmented from business-critical systems.
• Fiber Uplink Capability – The combo SFP port allows fiber optic uplink connections for long-distance network extension (up to 10km or more depending on SFP module used). Connect remote buildings or extend networks beyond the 100-meter Ethernet cable limit.
• Auto Loop Prevention – Eliminates the need for Spanning Tree Protocol (STP) configuration. The switch automatically detects and blocks loops in the network topology, preventing broadcast storms that can bring down entire networks. This feature is especially valuable for installers who may not have advanced networking knowledge.
• Energy Efficiency – Fanless design not only ensures silent operation but also reduces energy consumption and extends equipment lifespan by eliminating mechanical fan failures. IEEE 802.3az Energy Efficient Ethernet (EEE) support further reduces power consumption during low traffic periods.
• Installation Flexibility – Desktop placement for small offices, wall mounting for space-constrained locations, or professional rack mounting in server rooms and equipment cabinets. The compact form factor fits easily into standard network racks alongside other equipment.
• Compatibility – Works seamlessly with all major IP camera brands (Hikvision, Dahua, Axis, Uniview, etc.), wireless access points (Reyee, Ubiquiti, TP-Link, etc.), and VoIP phone systems. Compatible with hybrid networks mixing PoE and non-PoE devices.
